Product Details
＋

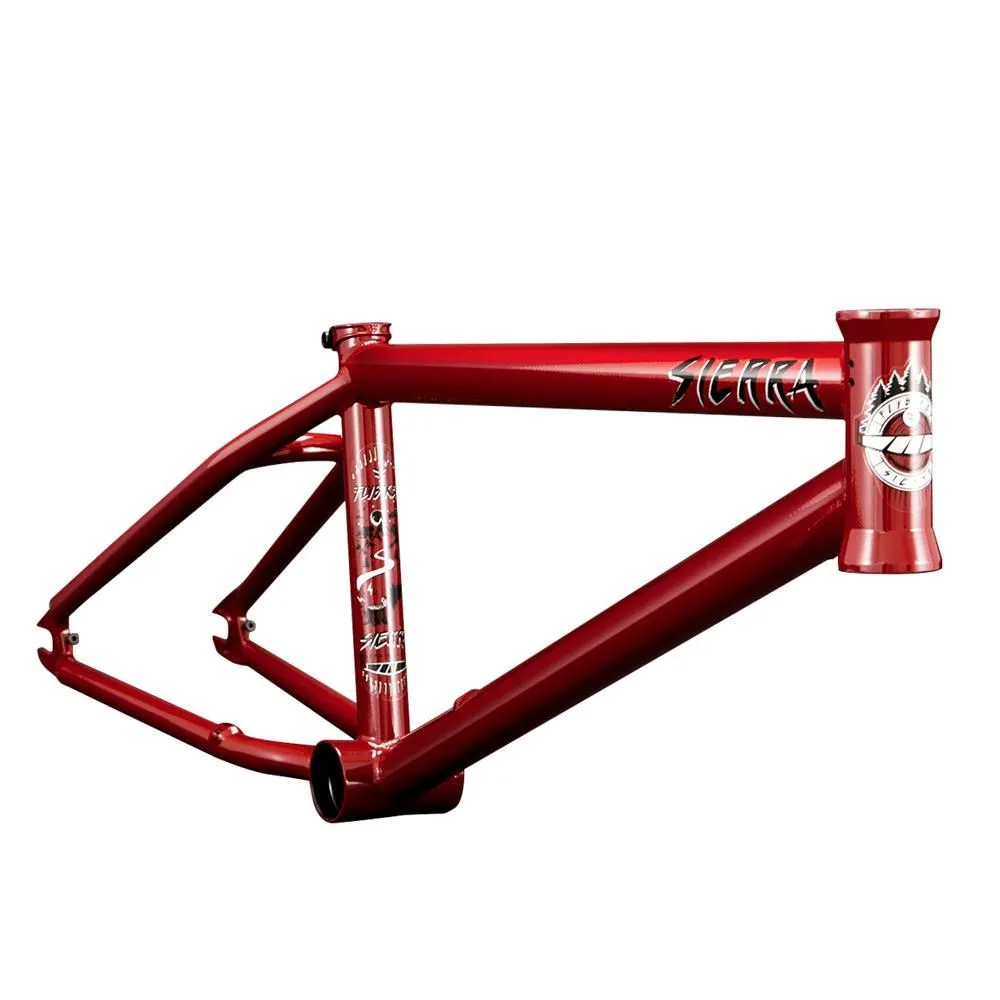

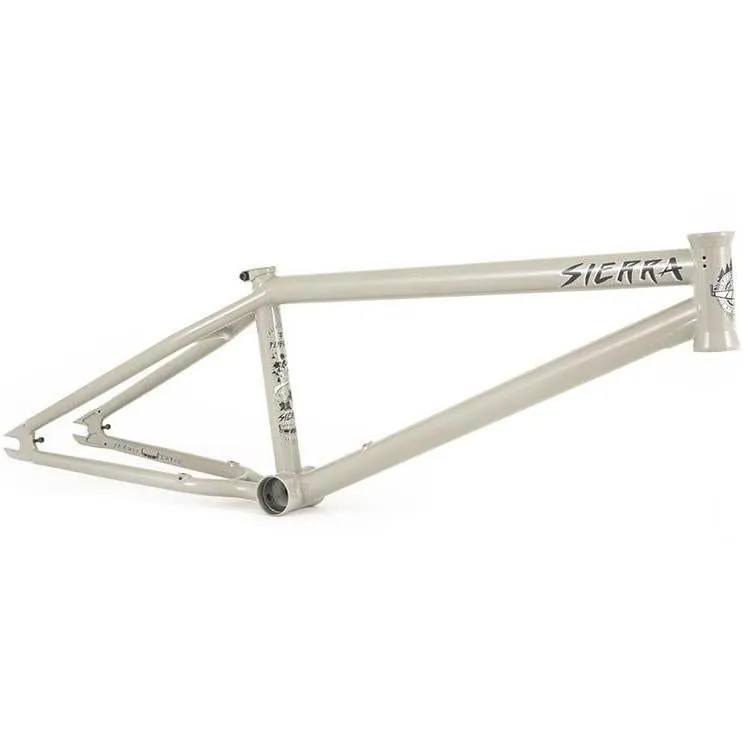

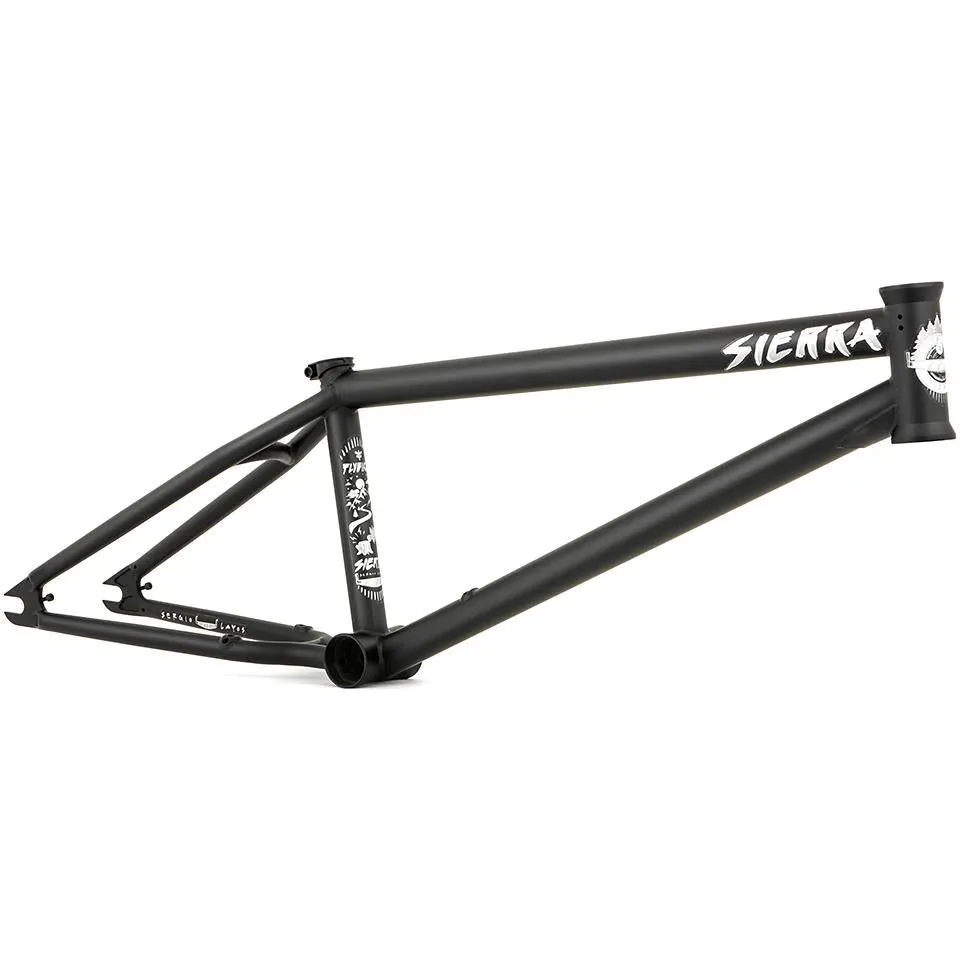

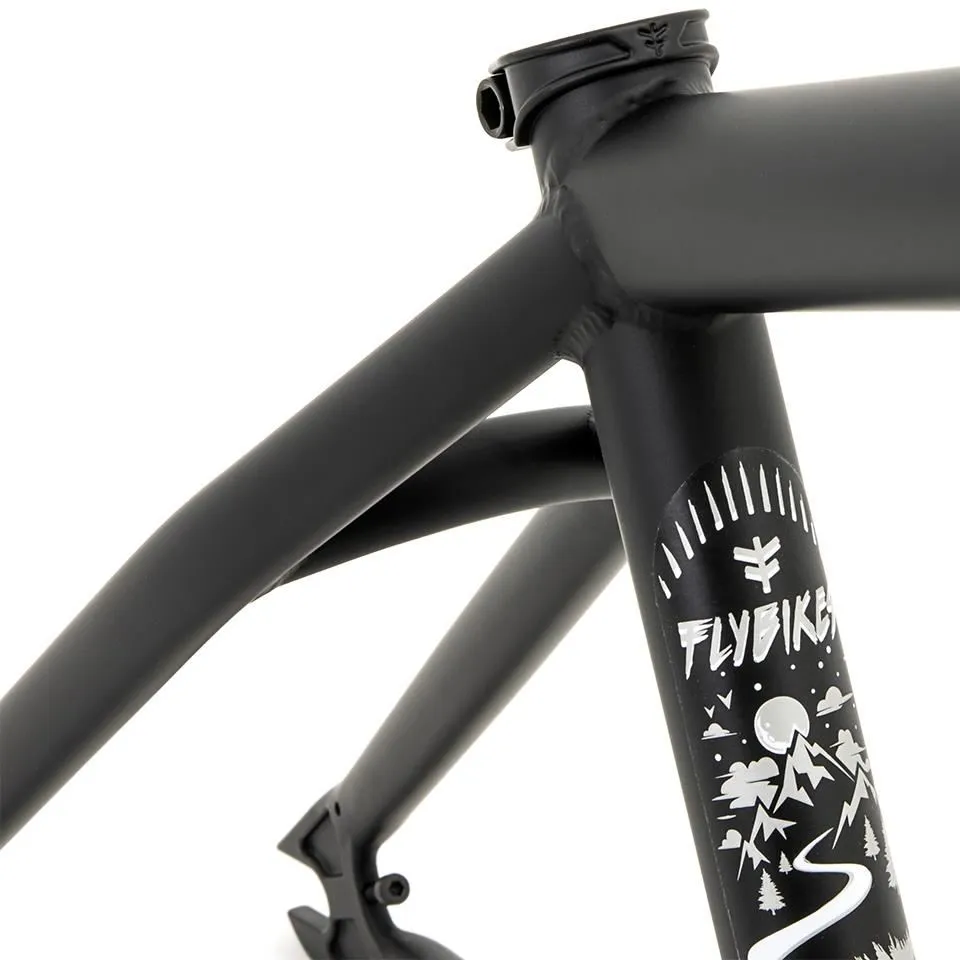

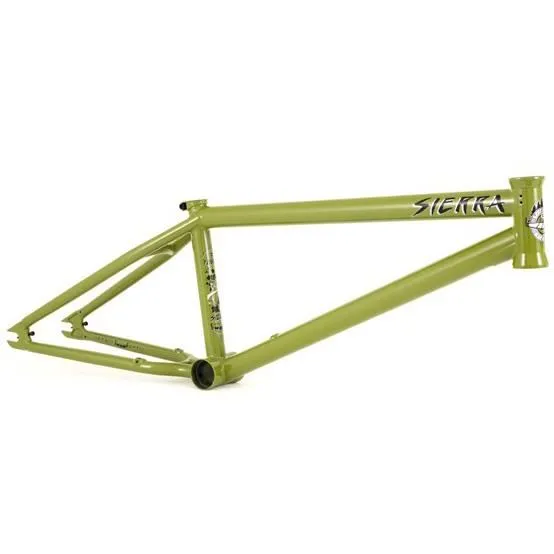

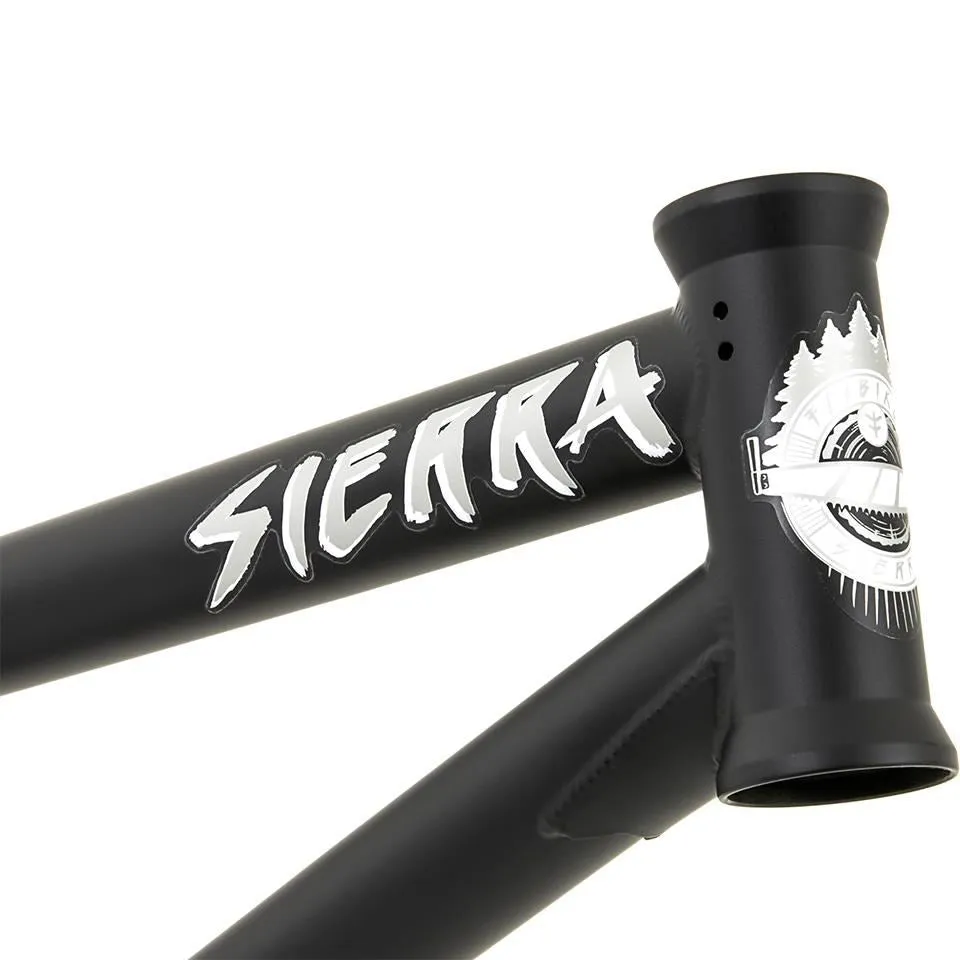

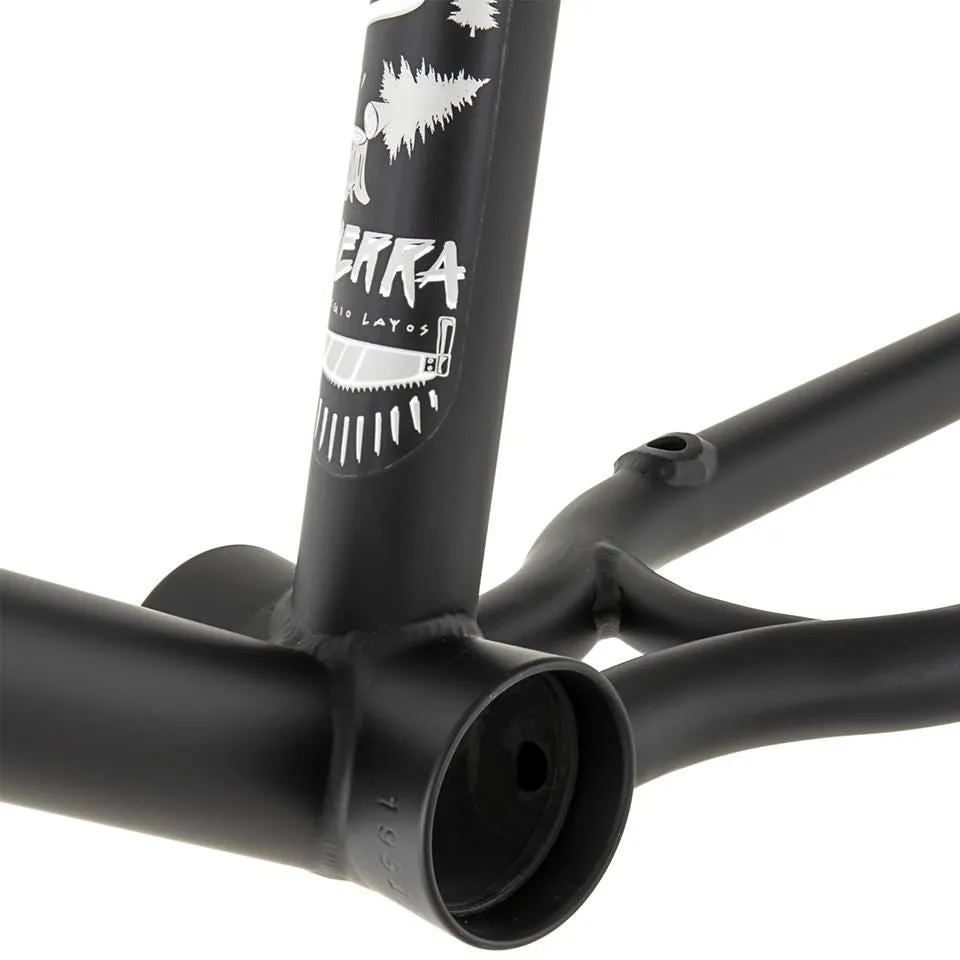

After another amazing year for Sergio Layos. Fly have only made a few small changes to make his signature frame even better. Sergio has decided to make the move back to a 75° head tube angle. The frame features internal and external gussets. multi-butted and tapered tubing. an Investment Cast seat post clamp with the Horizontal Cut System. removable EBS style brake mounts and Investment Cast Dropouts with integrated chain tensioners!
###section###
Product Specs
- MATERIAL: 4130 Chromoly
- HEAD TUBE ANGLE: 75°
- SEAT TUBE ANGLE: 71°
- CHAIN STAY LENGTH: 13.6
- BB HEIGHT: 11.5
- WHEEL SIZE: 20
- STANDOVER HEIGHT: 8.75
- DROPOUT SIZE: 14mm
- HEADSET TYPE: Integrated
- BB TYPE: Mid
- BRAKE MOUNTS: Removable
- GYRO TABS: Drilled
- WEIGHT: 5lbs
###section###
Product Highlights
- Neutral Geometry for responsiveness and stability
- Great all round frame for all types of riding
- High-quality Chromoly construction
- Gusseted tubing for added strength
- Built in chain tensioners
